ET Multi-Track

Electrotherm provides power supply units with multi-track systems that are customized accordingly with the customer needs for optimum utilization of installed KVA. These PSUs allow simultaneously power-sharing capacities between furnaces in any ratio within the rated power.

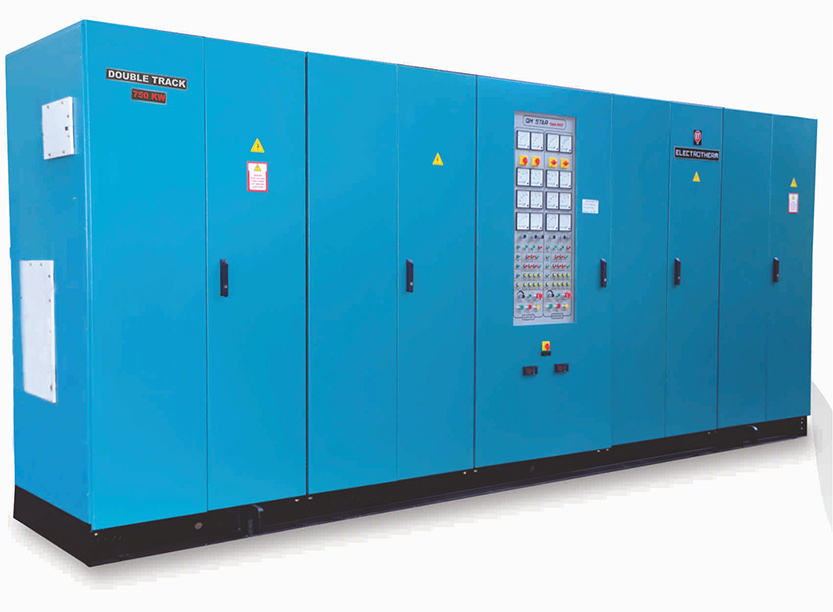

ET Double-Track: ET Double-Track is the double output power supply available to foundrymen for optimum utilization of installed KVA. The infinite power-sharing feature has the potential to increase the KVA utilization index by up to 25-30%. Field reports indicate an increased metal output of 25-30% with ET Double-Track compared to single-output power supplies. An optional stand-by crucible can be provided to take care of double-track operation in the event of any one of the crucibles being under re-lining/sintering/maintenance. The patented PLC-controlled switch ensures a smooth switch over of power to the standby furnace.

ET Double-Track Plus: ET Double-Track Plus is the most versatile double output power supply available in the market today. The unique feature is the capability of the system for sharing the power with a stand-by (3rd) furnace, thus ensuring the uninterrupted continuation of metal production even when one of the furnaces is under re-lining/sintering/maintenance. This feature makes ET Double-Track plus a double output power supply in a real, complete, and comprehensive sense of the word making it far superior to any of the competitive products. The seamless electronic integration eliminates the need for any kind of mechanical switching for the selection of furnaces. If the need arises at any given point of time for a larger quantum of metal to be made available, power can be given to all the three crucibles simultaneously in the required ratio, within the limits of overall rated power, and the metal from all the three furnaces can be tapped at a time to ensure a larger single batch of liquid metal.

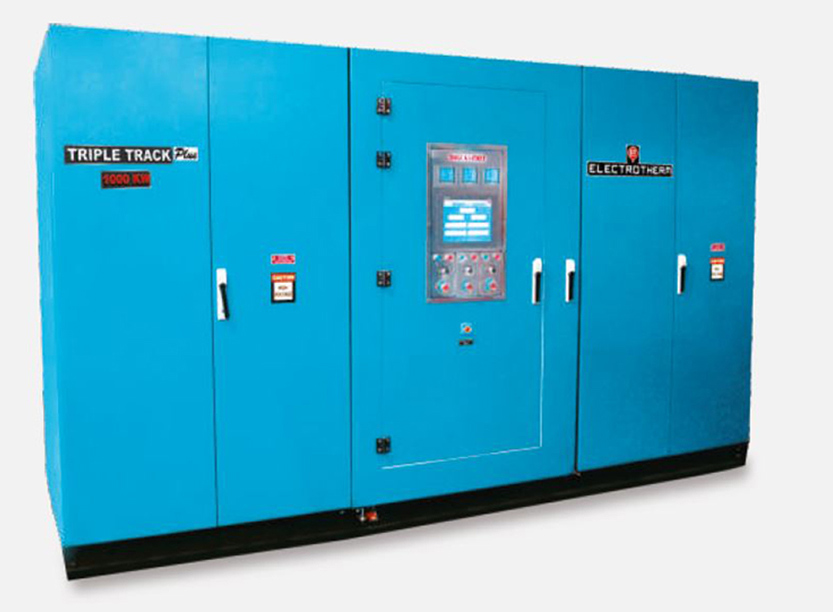

ET Triple-Track: This is the triple output power supply available to foundrymen for optimum utilization of installed KVA and continuous supply of liquid metal to mould lines. The infinite power-sharing feature has the potential to increase the KVA utilization index to almost 100%. Field reports indicate an increased metal output of 5% or more compared with Double-Track power supplies. An optional stand-by crucible can be provided to take care of triple track operation in the event of any one of the crucibles being under re-lining/sintering/maintenance. The patented PLC-controlled switch ensures a smooth switch over of power to the standby furnace.

Testimonials

We convey our sincere thanks and our appreciation to M/ s Electrotherm family for the development, realization, testing, qualification and commissioning of 10 MW power supply system for our Plasma Wind Tunnel facility. We are extremely glad that M/ s Electrotherm has taken up this challenging task, when no such system was existing in the country. We wish, we should have many more such collaborative ventures in future with M/ s Electrotherm and contribute to ISRO's futuristic advanced R&D programmes.

Mr. P.A. Krishnamoorthy, VSSC-ISRO

Hereby we feel glad to have 4000 KW/ 10 Ton DTi Furnace set along with HSMC lX Caster. We have commissioned this equipments in our plant on 21st May 2018 & found performance which was committed by Electrotherm was achieved. Electrotherm's project execution was extraordinary & their process understanding & support was remarkable. Looking to the performance of other equipments of other makes running within our group, we have found performance of Electrotherm make DTi Furnace to be best.

Mr. Rakesh Patel-SWASTIK CONCAST
