Multi-Radius Bullet Caster

Modular caster changed the way smaller induction furnace owners have been making steel and enabling them to migrate from cumbersome and expensive ingot making to billet making to direct hot billet charging for continuous rolling mills. Taking a step forward, Electrotherm has launched a Multi-radius bullet caster which revolutionized small and medium scale steel making industries around the world. This simple but high-tech caster is playing important role in shaping steel in shaping the industry which helps in improving overall plant efficiency and optimize the cost of production. Equipped with essential features like rigid dummy bar, automatic secondary spray cooling, multi-point unbending & straightening, and optimized equipment & process automation. Bullet caster is essentially meant for reliable, flexible, safe, and reproducible casting. It also ensures low operation & maintenance cost and provides an option of direct rolling of hot billets.

Bullet casters provide throughput up to 30 Ton/hour/strand with casting speed at 5 M/Min@110Sq. M/Section size and oscillation speed ranging from 40 – 300 CPM.

Bullet casters have higher-level features like:

Ladle turret for high productivity plants with multiple melting furnaces also improves the safety of machines and operators.
Hydraulic oscillation system for dynamic adjustment of frequency, stroke, and waveform ensures highest surface quality, accuracy, safety, and reduced space requirement and maintenance cost.

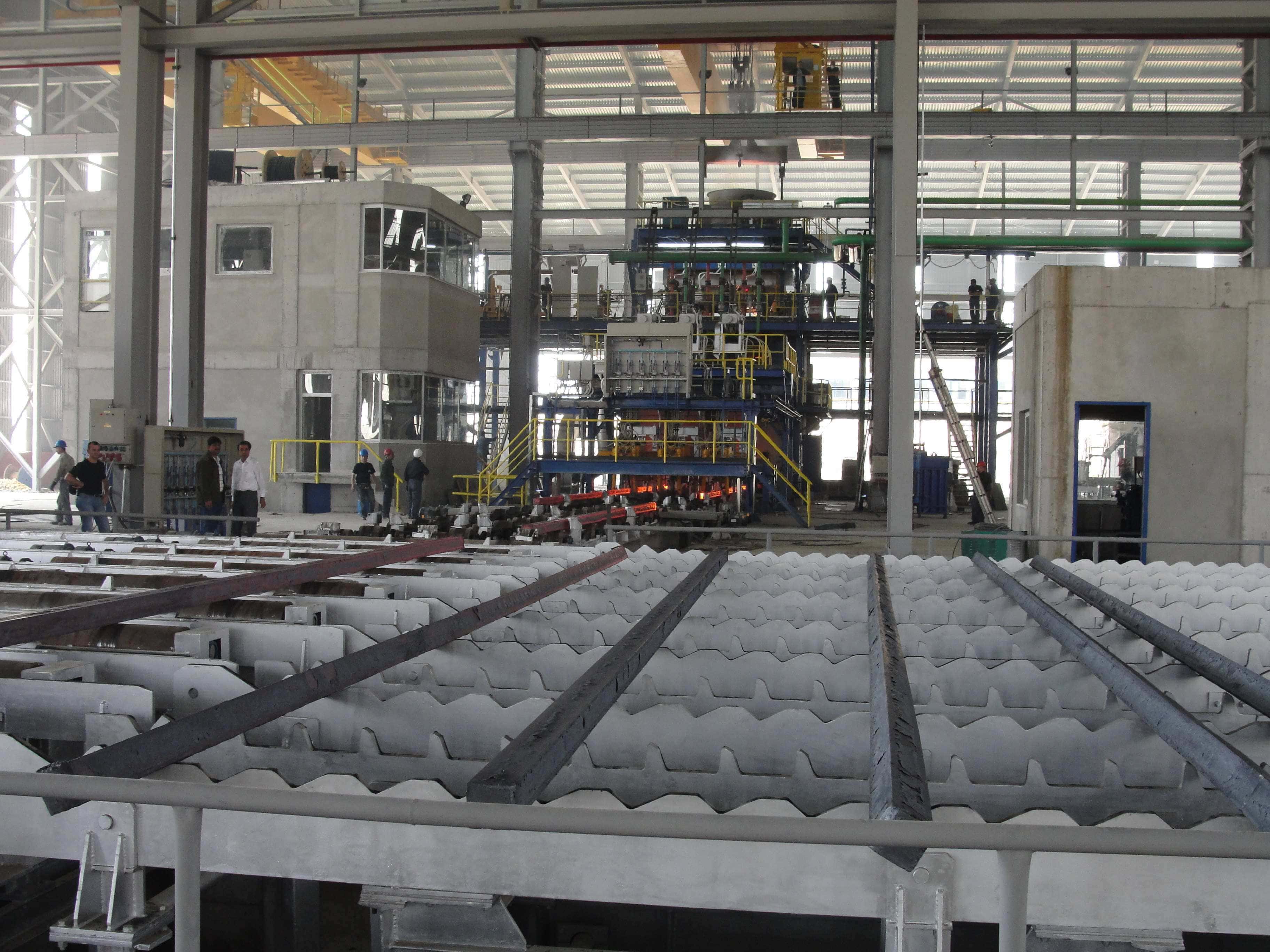

The turnover cooling bed is installed in plants willing to produce 12 meters long billets for meeting dimensional accuracy.
An automatic gas cutter or hydraulic shear is installed for reducing human-dependent operations, which also ensures exact billet length with high cutting quality.

Advantages

High-speed billet/bloom caster through multi-point unbending and optimized secondary cooling.
Higher operational flexibility.
Rigid dummy bar for enhanced productivity and quick re-stranding.
Quickly changeable sizes for the lowest turnaround time.
Motorized tundish car for a quick change of tundish.
Forced mould lubrication system.
PLC-SCADA based automation system.
High reliability and higher plant availability.
Low operational and maintenance cost.
