Casted Iron

Modular Caster

There are numerous steel melt shops with smaller capacity induction furnaces that have been casting ingots due to the non-availability of simple and economically viable billet casting technology. Such plants need modular caster which can be installed in a reasonably shorter duration without affecting production and without any major alteration in existing infrastructure. Electrotherm took initiative to develop Modular and Compact Billet Casting Technology to meet the needs of existing ingot making units willing to migrate to billet making and new mini steel plants. It is suitable for casting heat size as small as 5 ton and modules are available for casting section from 80 mm x 80 mm to 150 mm x 150 mm reduced operating cost and casters that are simple and safer to operate.
Modular Caster Unit
Features:
  • Higher reliability and optimum cost of operation.
  • Modular design with factory assembled and aligned equipment reduces the civil cost, erection, and commissioning line.
  • Modular design with the possibility of increasing the number of strands in the future by adding multiple modules at the same place for capacity expansion.
  • Operational flexibility and minimum time required for size change.
  • Rigid dummy bar for enhanced productivity and quick re-stranding.
  • Motorized Tundish trolley for a quick change of Tundish.
  • PLC-based secondary spray cooling system ensures optimum cooling for minimum scale formation and direct rolling.
  • Forced mould lubrication ensuring controlled oil flow.
  • User-friendly with low operating and maintenance cost.

Advantages

  • Complete “Melt to Cast Solutions”.
  • Minimum transition time from existing ingot making to billet plant making almost without affecting existing plant productivity.
  • The required casting platform size is 6 m x 9 m for a single strand and suitable for existing ingot making plants.
  • The flexibility of operating each strand independently for optimized caster usage according to availability of molten metal.
  • Flexible configuration with the possibility of up-gradation and expansion by adding modules.
  • Substantial saving due to reduced scale generation.
Download PDF

Gallery

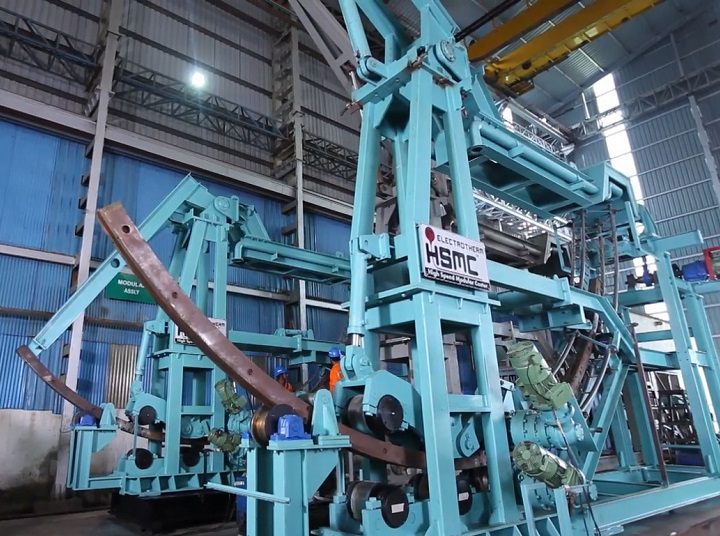

Modular Caster Unit

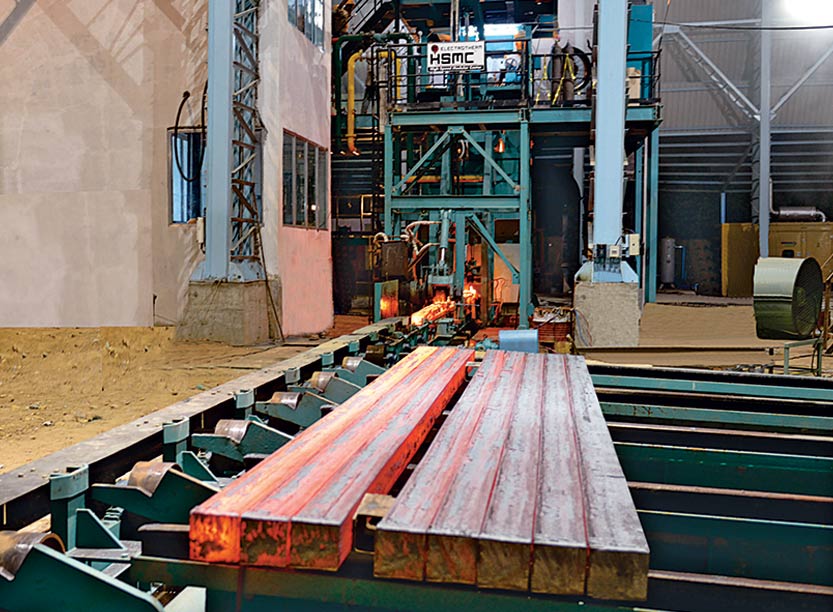

Modular Caster
