Continuous Casting Machine

Conventional Caster

Electrotherm introduced in the market, direct rolling concept through high-speed caster saving a huge amount of energy used for re-heating of the billets. Conventional casters (6/11) casters are most suitable for hot billet rolling as the temperature at the withdrawal is 1100 °C, the highest in the industry, and there is no bleeding at the cutting point.

Conventional casters provide throughput up to 24 Ton/hour/strand with casting speed at 3.8 M/Min@110Sq. M/Section size and oscillation speed ranging from 40 – 300 CPM. These casters are robust machine structures with civil integration, hence there is no vibration even at high speed, and can run at very high CPM. Casters are made of sand-blasted steel structure with anti-corrosive treatment with high-temperature paint.

Advantages

  • Most economical operation due to high productivity.
  • Low scale loss due to high speeds.
  • The highest percentage of hot billet rolling due to high temperature at withdrawal.
  • Lower Civil Cost.
  • Less metal loss resulting in better yield.
  • Higher shell thickness at mould tube exit to avoid bleeding break-out.
  • Parabolic type Mould Tube design especially for higher casting speed.
  • Mould jacket assembly designed for uniform heat transfer.
  • PLC controlled secondary cooling automation with three cooling zones optimized for higher Shell growth in soft nature.
  • Precise control over a water spray system hence better control over billet temperature and billet quality.
  • Specially designed withdrawal assembly and machine with the closed-loop water-cooled system enabling protection of machine parts.

Gallery

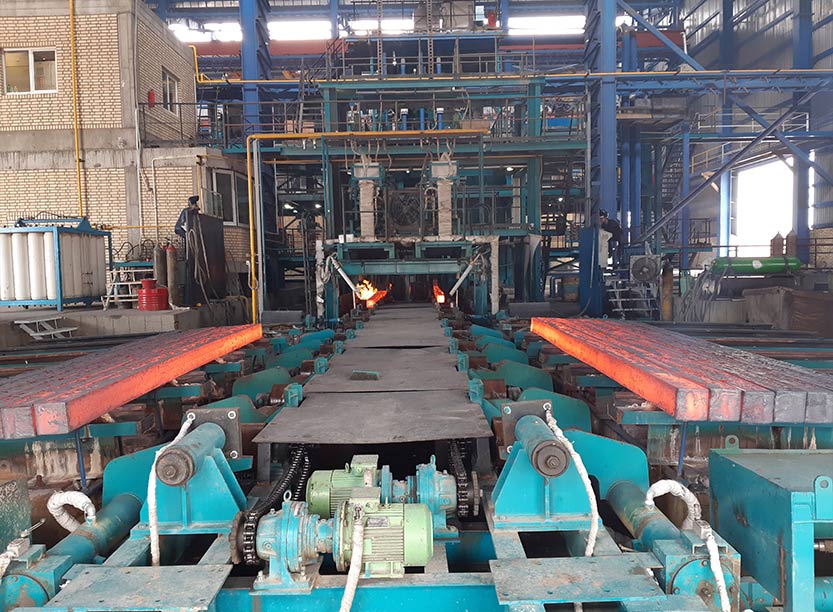

Conventional Caster
