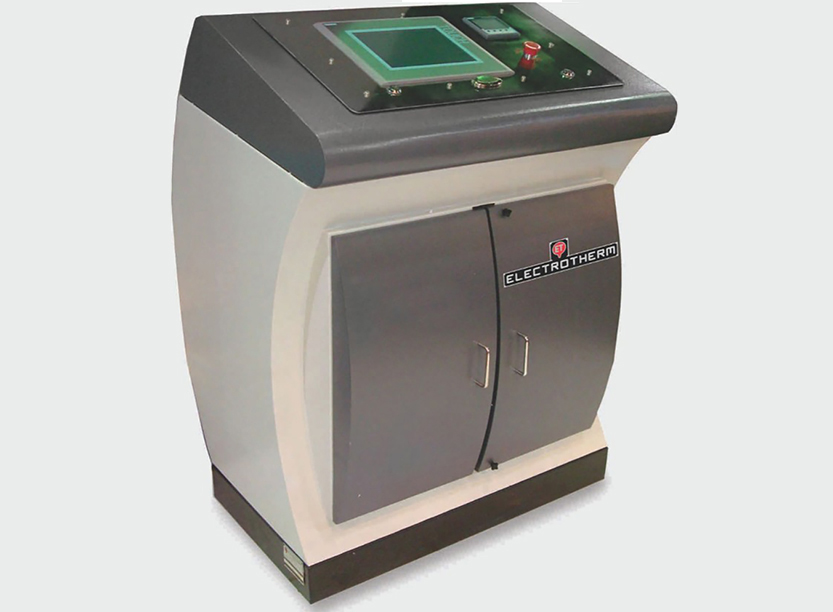

Power Optimizer

A power optimizer is used to have an optimum efficiency of furnace it is required to operate an induction furnace system very close to the resonance frequency. The inductive reactance of the coil keeps on varying continuously due to change in charge quantity, temperature, wear of lining, etc. A power optimizer is used to add or remove the M.F. capacitors of the induction furnace automatically by using an advance programmable logic controller. It continuously monitors the exact requirement of the reactance of the LC tank circuit by adjusting KVAR and thus facilitates the operation of the furnace very close to the resonance frequency.

Features

Advance PLC is used to control the total operation of the power optimizer
Touch screen color HMI for easy operation
Highly reliable
Response time in milliseconds

Advantages

It can be installed easily in Existing System with less time.
It can be installed easily in Existing System with less time.
Improve the Power Factor of the Furnace at all Lining Condition.
Reduce the Melting time and Increase the Productivity.
As it is automatic, no manual intervention required to operate add-removal of MF capacitors thus preventing unwanted intermittent delays in managing MF tank capacitors.
It increases productivity by 5 to 10 %.
Right time switching ON/OFF MF capacitors will saves energy up to 20 to 25 unit/ton
