Induction Heating Aluminum

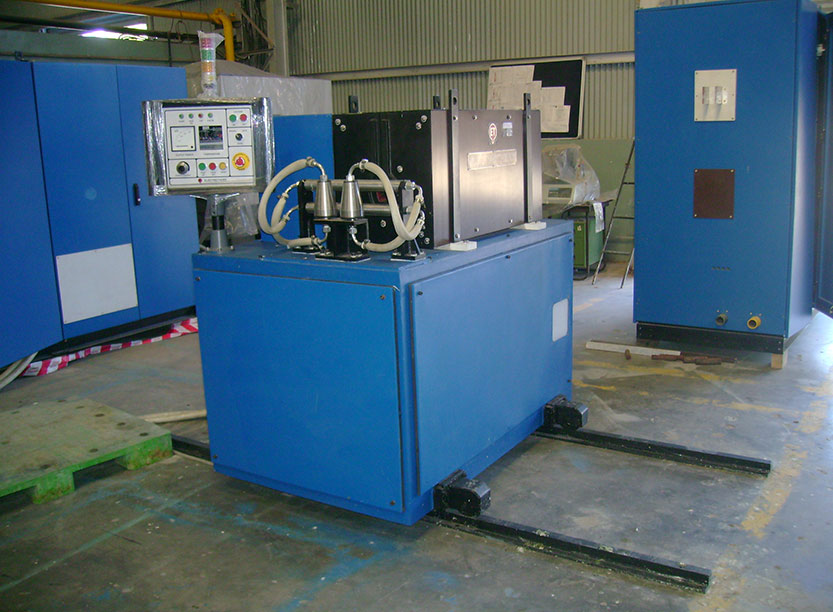

Induction Aluminum Cast Bar Heater

Induction aluminum cast bar heating equipment is installed before the hot rolling unit heating coils are designed as per the job size (round/square/trapezoidal). Useful in conductor, cable, and wire rod mill. Continuous heating lines save thousands of energy dollars by utilizing an induction heater and restoring only the additional energy required to reach optimum rolling temperature.

Model # Induction Aluminum Cast Bar Heater
Cast bar cross section 639 Sq.mm, 1670 Sq. mm, 2107 Sq. mm, 2213 Sq. mm
Cast bar shape Trapezoidal
Entry temperature 410 - 450 °C
Exit temperature 525 - 550 °C
Power rating 150 - 450 kW
Frequency 1 kHz
