Channel Type Inductor

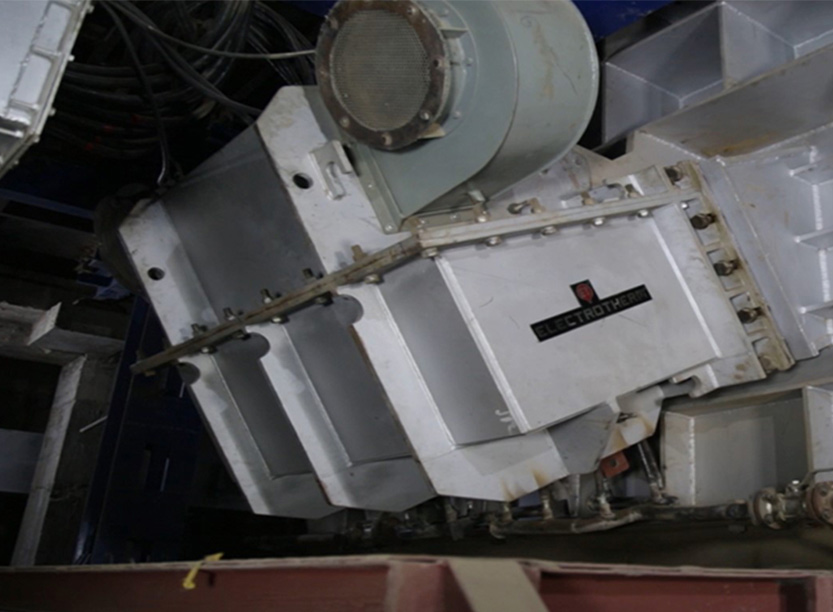

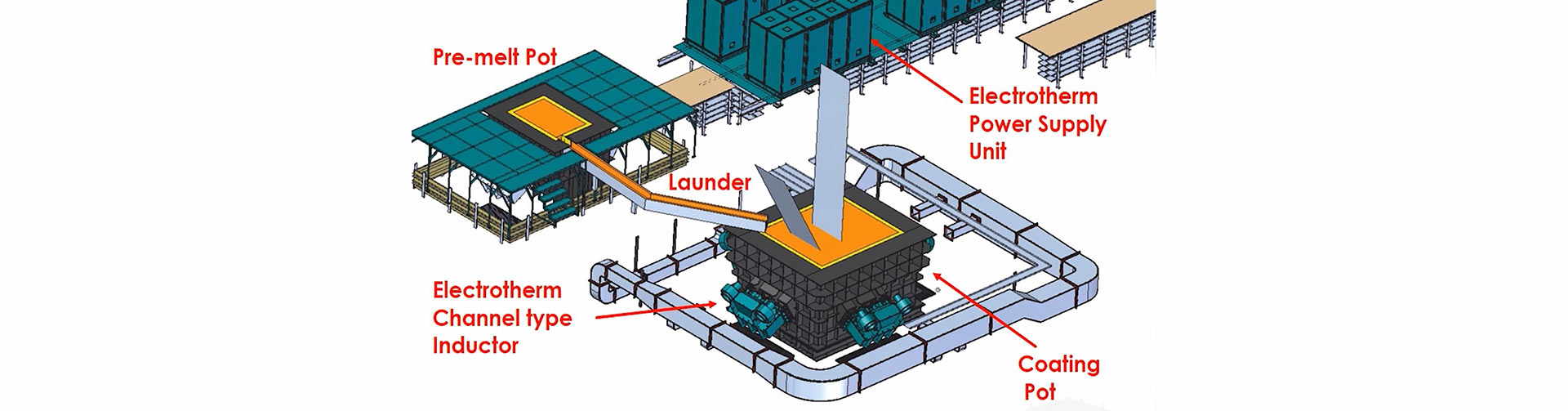

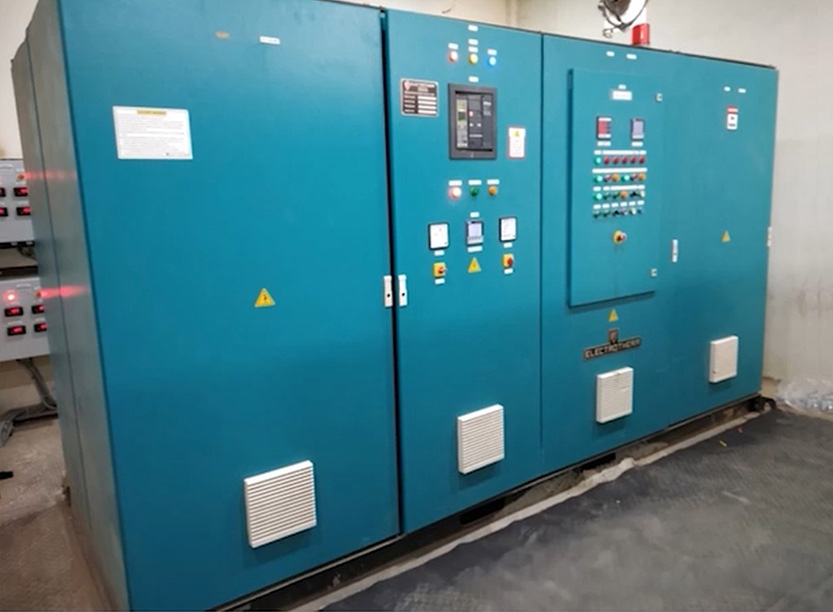

Electrotherm’s provides a specially designed coating pot with channel type inductor and power supply unit for continuous coating line. Induction heated coating pot has robust steel fabricated casing with castable and brick refractory lining along with line frequency air-cooled power supply unit and air-cooled channel type inductor. The power supply unit consists of a circuit breaker, air-cooled auto-transformer, tap change over switch, contactors, balancing reactors, digital metering, and indications.

Model #	Channel Type Inductor
Application	Galvanizing and aluminium-zinc coating
PSU	Phase balance, air-cooled
Power rating	300 - 600 kW
Frequency	50 Hz

Gallery

Channel Type Inductor
