Bar Heater

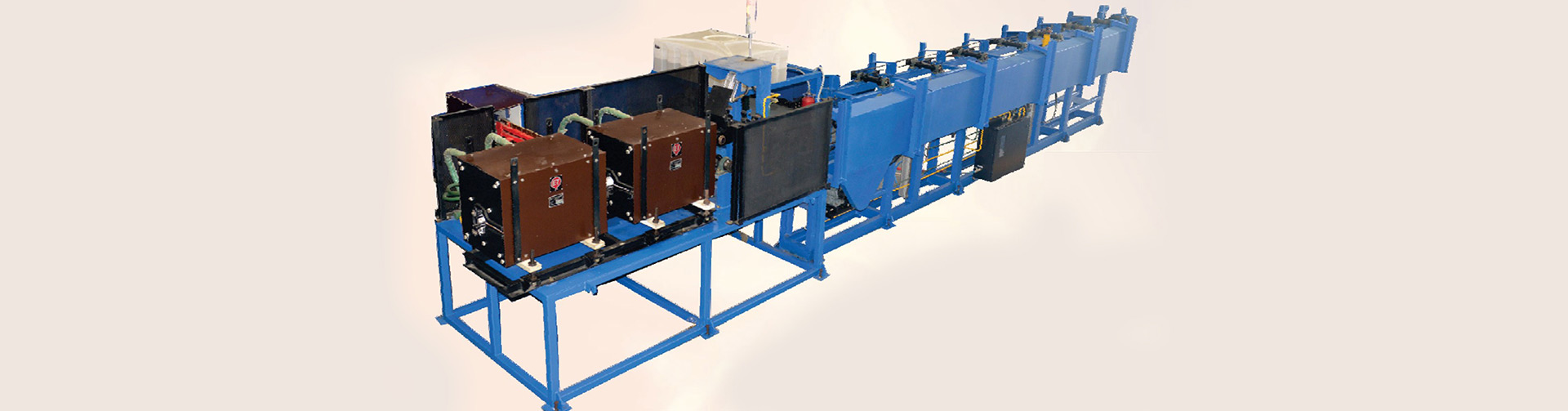

Induction Bar Heater

Induction bar heaters are loaded with multiple features such as the equipment has load resonant technology, digital control-based IGBT power supply unit. They provide an input power factor of 0.99 for 0 to 100% of output power. They have a flexible modular design, single utility connection, and true temperature uniformity control. With no special foundation required, this equipment has a robust and heavy mechanism handling system. Suitable for semi-forged and unforged component heating.

Compact and modular design, Electrotherm Multi-Zone heater can be installed very efficiently into new or existing lines. Individual add-on options include Bar charging, chain transfer table/ Ramp loader, bar separation system, entry roller table, and transfer units for downstream for forging/rolling. Due to its flexibility, the induction line can be adapted to every desired throughput.


Advantages

  • High energy efficiency.
  • Enhanced productivity.
  • Optimum forging temperature.
  • Rapid start-up.
  • Reduced power consumption.
  • Higher quality output.
  • Improved die life.
  • Low running cost.
  • Automatic handling.
  • Uniform heating.
  • Negligible scale loss.
  • Environment-friendly.

Model # Induction Bar Heater
Bar size Round 16 mm to 120 mm
Power rating 50 - 4000 kW
Frequency 300 Hz - 30 kHz
Temperature: 1150 ± 50 °C
Download PDF

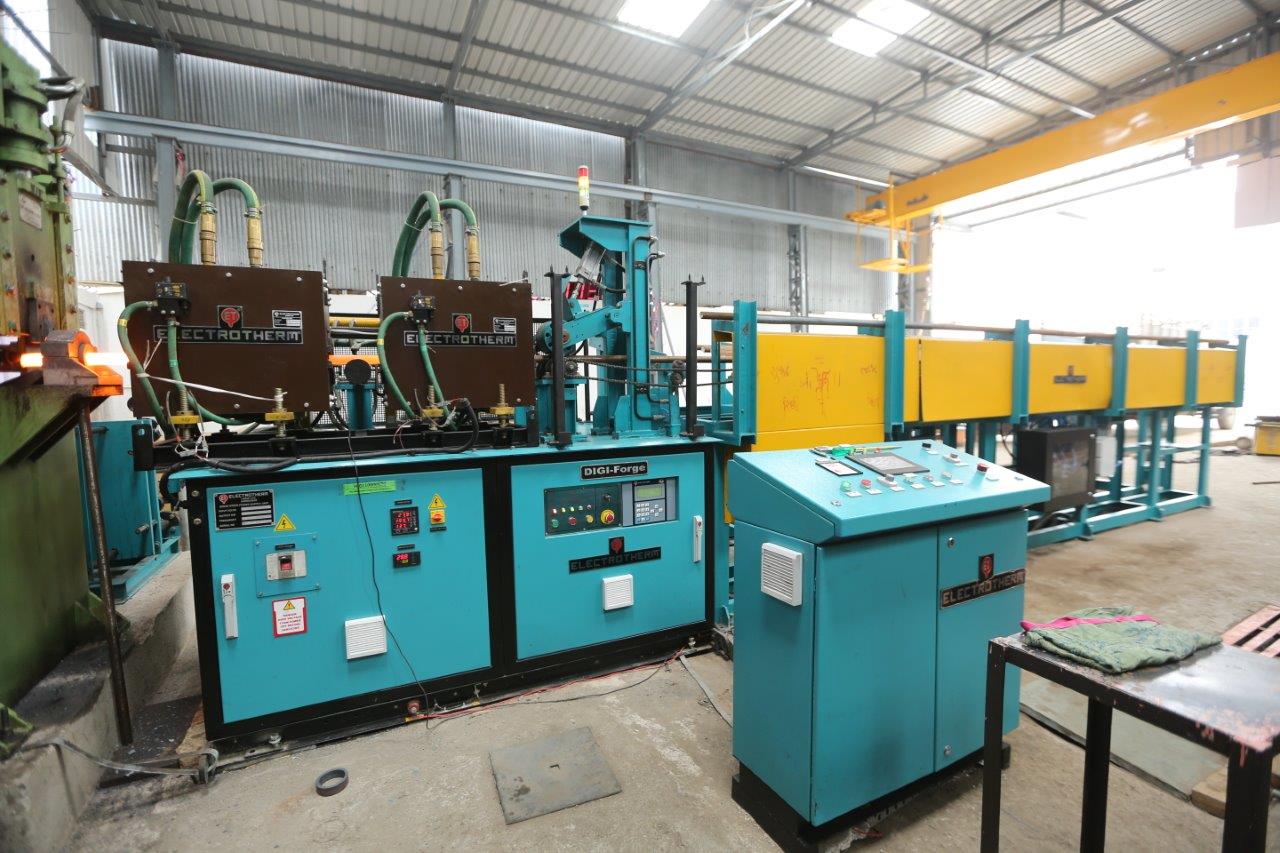

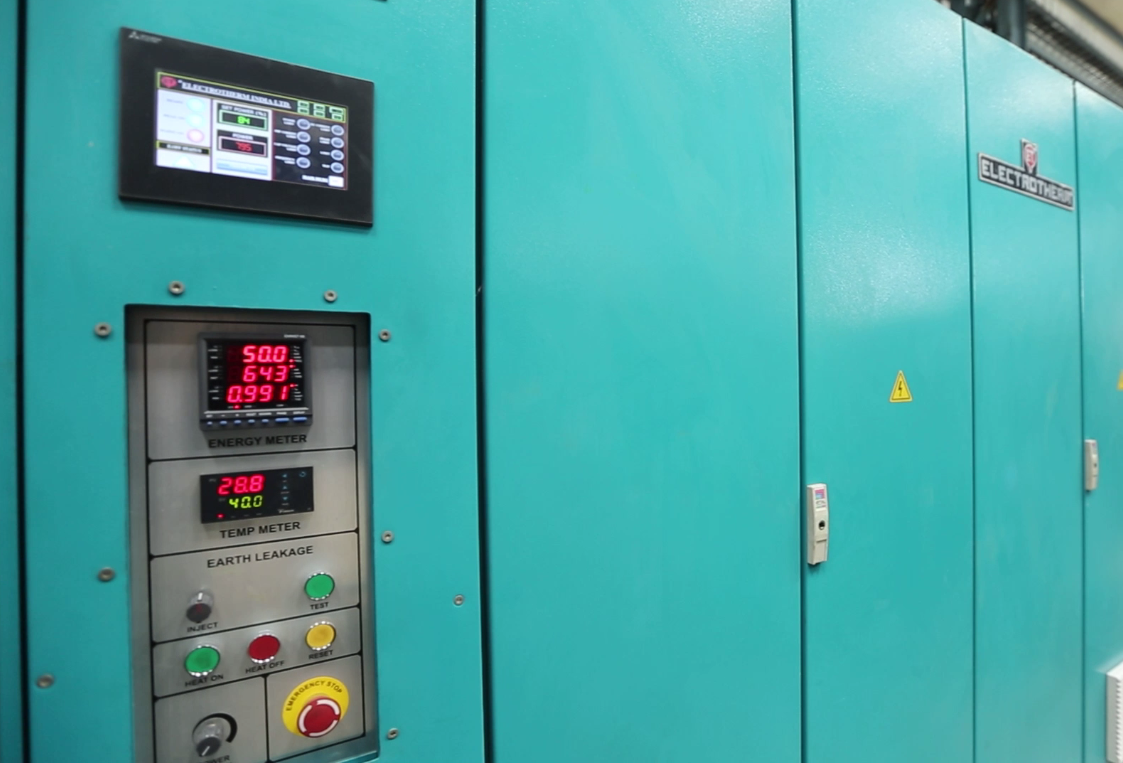

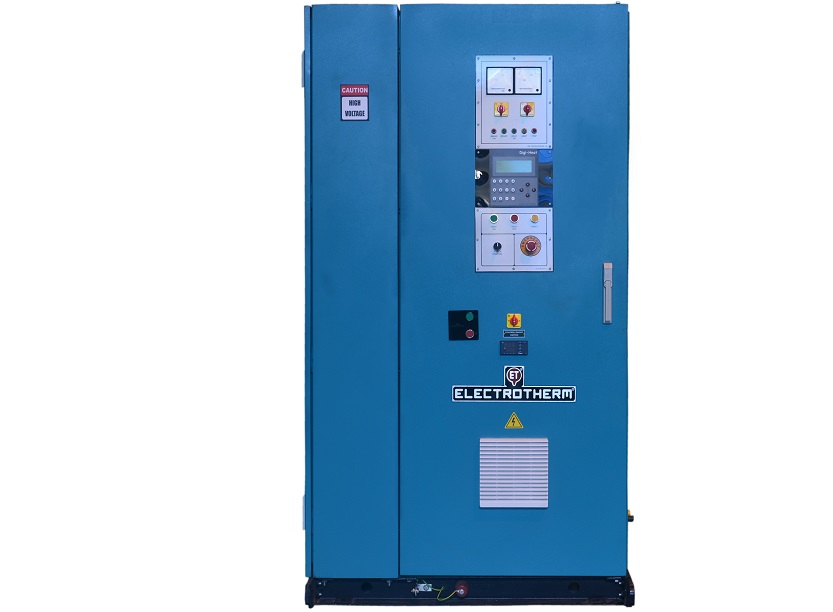

Gallery

Induction Bar Heater
Induction Bar Heater
